Z60 Vet
Veterinary Ultrasound System
Z60 Vet is a portable Color Doppler veterinary ultrasound system with a 15-inch HD monitor and 1.5h battery scanning for large and companion animals.
- PSH™ (Phase Shift Harmonic Imaging)
- iClear™ (Speckle Suppression Imaging)
- iBeam™
- iScape™
- ExFOV
- B-Steer™
15-inch High Definition monitor
Overview
Z60 Vet overview
The Z60 Vet is a powerful and versatile Color Doppler system which provides you the best solution for veterinary ultrasound imaging with excellent performance. Due to the comprehensive configurations, dedicated veterinary workflow and integrated design, you can be assured of an outstanding ultrasound experience in both large and companion animals.
Packed with professional innovative technology inside this smart portable system makes Z60 Vet a perfect veterinary ultrasound system with excellent image quality and various advanced features.
Key features
Z60 Vet features
PSH™ (Phase Shift Harmonic Imaging)
Purified Harmonic Imaging for better contrast resolution, providing clearer images with excellent resolution and less noise.
iClear™ (Speckle Suppression Imaging)
Gain improved image quality based on auto structure detection: sharper and continuous edges, smooth uniform tissues and cleaner 'no echo areas'.
iBeam™
Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

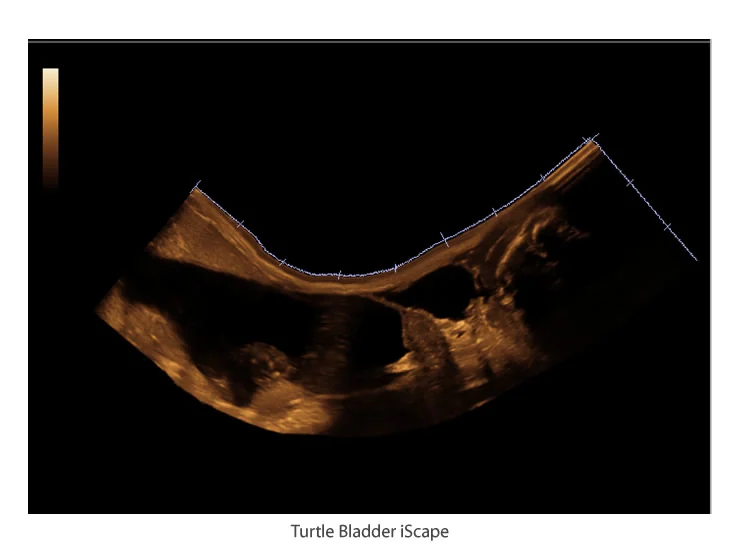

iScape™
Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability, making scanning much easier, smoother and more controllable.
ExFOV
Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.
B-Steer™
Your tool for deeper biopsy: allows adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.
Free Xros M™
Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.
Color M
Color Flow M mode and Color Tissue M mode offer you more details on veterinary diagnosis.

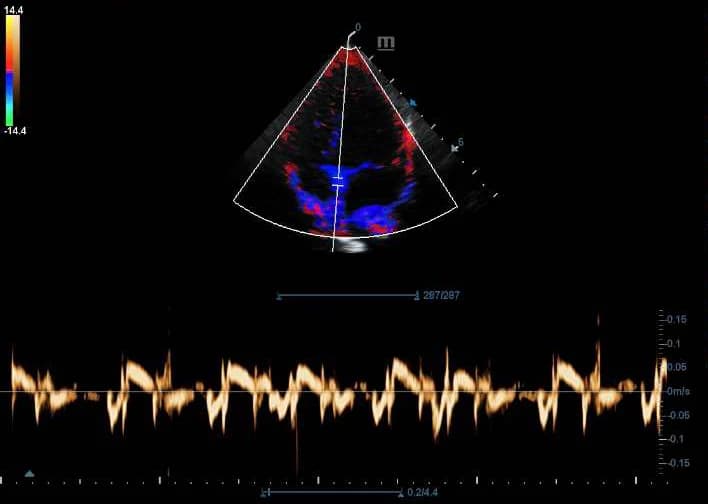

TDI
Tissue Doppler Imaging allows you to quantitatively evaluate animal myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.
iStorage™
Directly transfer veterinary images and reports to PC via network cable.
iTouch™
Gain instant auto image optimization in B, Color and PW Modes at the click of a single key.
iZoom
Gain instant full screen view at the click of a single key.
iStation™
Mindray's unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.
DICOM™
Comprehensive DICOM solution.
Ergonomics
60 degree tilting angle adjustable monitor; integrated design with internal AC power adapter; 1.5h uninterrupted scanning with rechargeable battery; 15-inch High Definition monitor with full screen design; water-proof protection cover designed for veterinary keyboard; backlit control panel designed for veterinary diagnosis in clinics; can be packed in a convenient hand-carried bag for easy transportation.
Transducers
Micro-convex: 6C2P. Convex: 3C5P. Linear: 7L4P, 7L5P, L14-6P, 7LT4P. Phased array: 2P2P, P7-3P. Endocavity: 6LE5VP, V10-4BP, 6CV1P, CB10-4P, 6LE7P.
Clinical applications
Where the Z60 Vet fits
Clinical focus
Species referenced
Canine · Turtle
Image quality
Z60 Vet clinical images

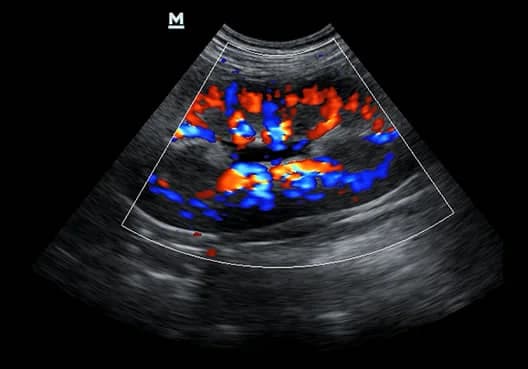

Canine Kidney

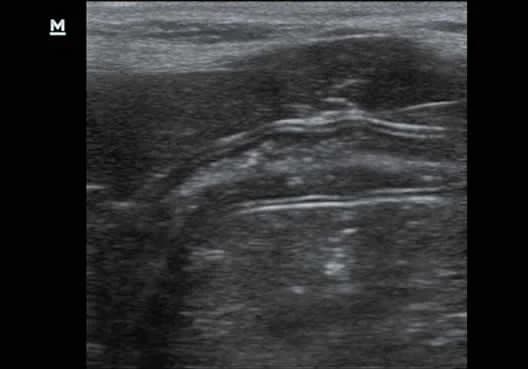

Canine Intestine

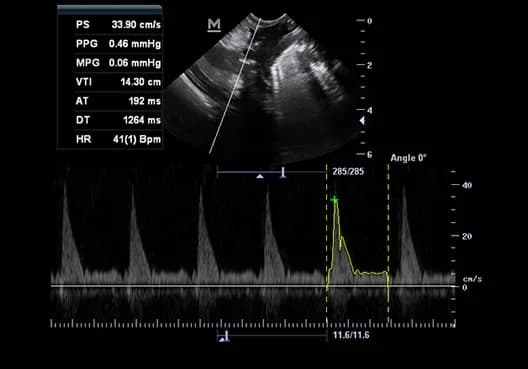

Turtle Cardiac PW
Technical specifications
Z60 Vet specifications
Highlights published by the manufacturer. Complete specifications and configuration options are available on request.
Request full specification sheet- Monitor
- 15-inch High Definition monitor with full screen design
- Monitor tilting angle
- 60 degree adjustable
- Battery
- 1.5h uninterrupted scanning with rechargeable battery
- Power
- Internal AC power adapter
- Free Xros M sample lines
- Up to 3 simultaneous
- Auto image optimization (iTouch)
- B, Color and PW Modes
- 6C2P (Micro-convex) center frequency
- 6.5MHz
- 3C5P (Convex) center frequency
- 3.5MHz
- 7L4P (Linear) center frequency
- 7.5MHz
- 7L5P (Linear) center frequency
- 7.5MHz
- L14-6P (Linear) center frequency
- 10MHz
- 7LT4P (Linear) center frequency
- 10MHz
- 2P2P (Phased array) center frequency
- 2.5MHz
- P7-3P (Phased array) center frequency
- 5MHz
- 6LE5VP (Endocavity) center frequency
- 6.5MHz
- V10-4BP (Endocavity) center frequency
- 6.5MHz
- 6CV1P (Endocavity) center frequency
- 6.5MHz
- CB10-4P (Endocavity) center frequency
- 6.5MHz
- 6LE7P (Endocavity) center frequency
- 6.5MHz
Z60 Vet brochure
Request the brochure and detailed product information from our team.
