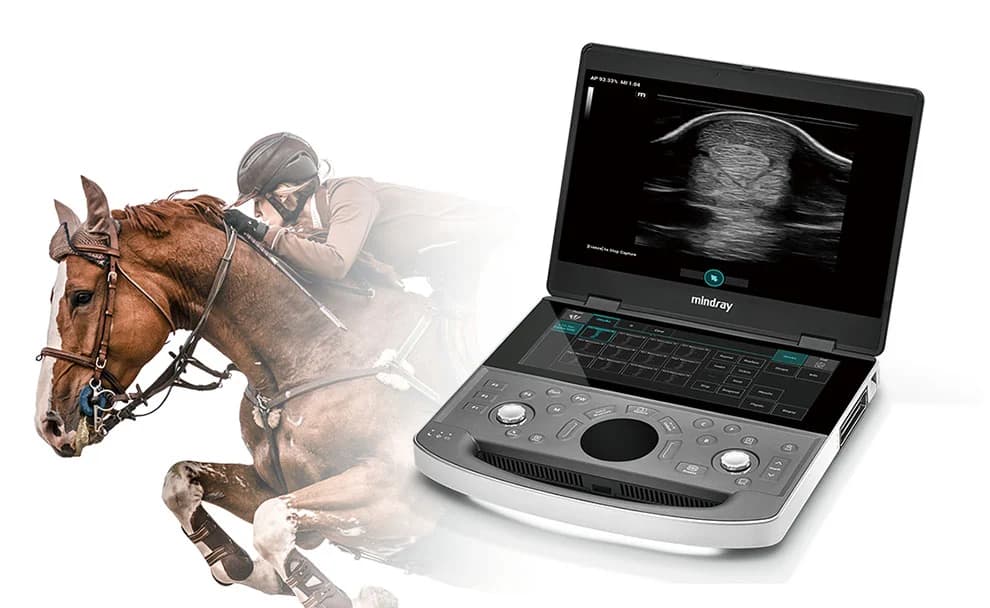

Vetus EQ
Equine Ultrasound Image System
“Efficiency & Quality”
Portable equine ultrasound system with the ZST+ imaging platform, dedicated MSK, cardiology, abdomen and reproduction applications, and a 3 kg main unit.
- Concise & Practical Innovative Design
- Sturdy Construction
- Dual Displays
- Ultra Thin, Ultra Light
- Advanced ZST+ Imaging Platform
- iWorks Dedicated Procedure
3 kg main unit, 44 mm thickness
Overview
Vetus EQ overview
Vetus EQ is a portable equine ultrasound image system focused on efficiency and quality. It combines a concise, practical design, with an intuitive touchscreen, sealed touchpad and seamless control panel, and a sturdy construction whose sealed interface resists hairs and fluids and is easy to disinfect.
Empowered by Zone Imaging, Zone Focusing, and Zone Processing, the Advanced ZST+ Imaging Platform improves image quality tremendously, enabling equine practitioners to see more detail with fewer keystrokes.
Dedicated equine applications cover MSK, cardiology, abdomen and reproduction. Focused on equine ultrasound diagnosis demands, Vetus EQ offers a series of professional presets for these application scenarios, which increase the efficiency and quality of equine practitioners' work. Portable accessories include the iCover protective cover set, the U-bank battery pack and a travel backpack.
Key features
Vetus EQ features
Concise & Practical Innovative Design
Intuitive touchscreen, sealed touchpad and seamless design control panel.
Sturdy Construction
Sealed interface resistant to hairs and fluids, and easy to disinfect.
Dual Displays
15.6-inch high resolution color LED monitor with narrow bezel and wide viewing angle, plus a 12.3-inch high sensitivity anti-glare color touch screen.
Ultra Thin, Ultra Light
3 kg main unit with 44 mm thickness.
Advanced ZST+ Imaging Platform
Empowered by Zone Imaging, Zone Focusing, and Zone Processing, the ZST+ platform improves image quality tremendously, enabling equine practitioners to see more detail with fewer keystrokes. Whereas in traditional imaging the echo signal is acquired line by line, with ZST+ Zone Imaging the echo signal is acquired zone by zone.
iWorks Dedicated Procedure
Standardized and simplified workflow dedicated to equine applications, reducing exam time by 50% and keystrokes by 80%.
MSK Application
L13-3Ns wide frequency range linear transducer for tendon application.
Cardiology Application
P4-2s phased array transducer with excellent penetration used for cardiology application.
Abdomen Application
C5-1s convex array transducer for abdominal diagnosis.
Reproduction Application
6LE5Vs intrarectal linear array transducer for reproduction.
iCover Protective Cover Set
Prevents dust, dirt and splash, and protects against accidental falls, bumps and smashes.
U-bank
Additional battery pack supports up to 8 hours of working time.
Travel Backpack
A sturdy backpack for working outside or on the go, with a unique design featuring an inner pocket to hold the ultrasound system, transducers, power supply, and gel bottle.
iScape
Presented for tendon application, iScape provides a panoramic view of anatomic structures for better viewing and measurements.
iNeedle+ (optional)
Needle visualization enhancement software that helps clinicians have increased confidence in identifying the needle tip's position during interventional procedures, such as injection, aspiration, and biopsy.
Specific and Professional Presets
Focused on equine ultrasound diagnosis demands, Vetus EQ offers a series of professional presets for different application scenarios, including MSK, abdomen, cardiac and reproduction, increasing the efficiency and quality of equine practitioners' work.
Clinical applications
Where the Vetus EQ fits
Clinical applications
- MSK (tendon)
- Cardiology
- Abdomen
- Reproduction
Clinical focus
Species referenced
Equine
Image quality
Vetus EQ clinical images

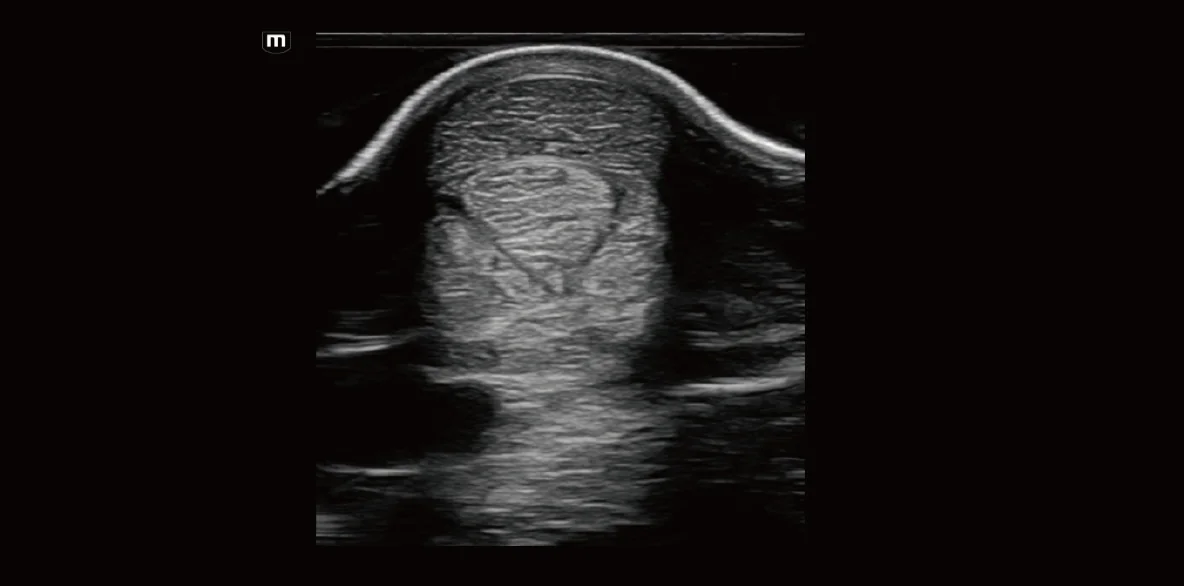

Equine Tendon

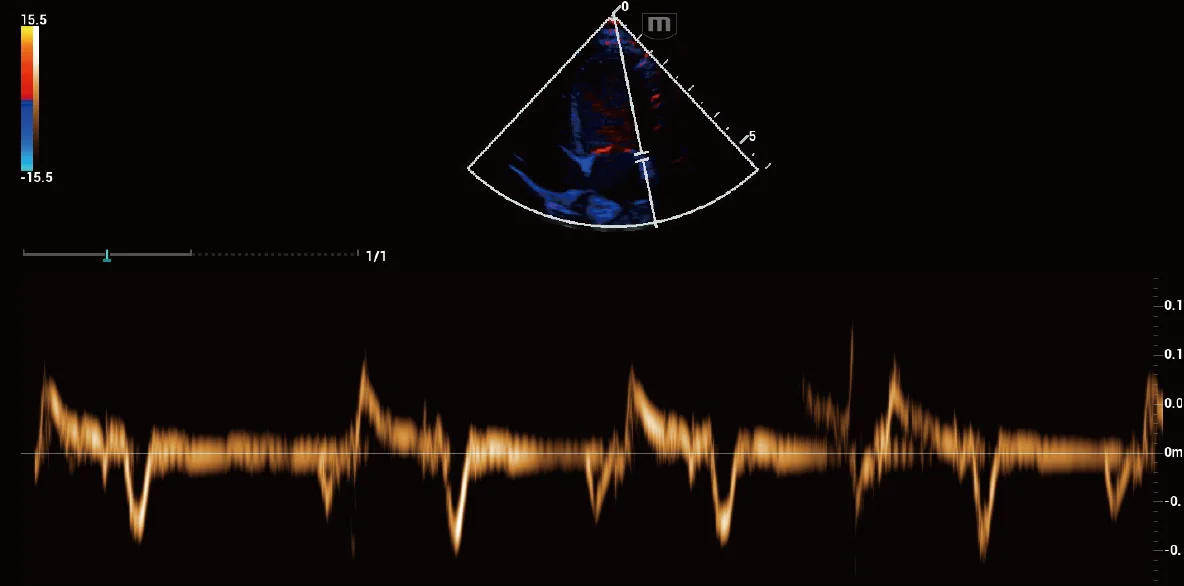

Equine Cardiac TVD

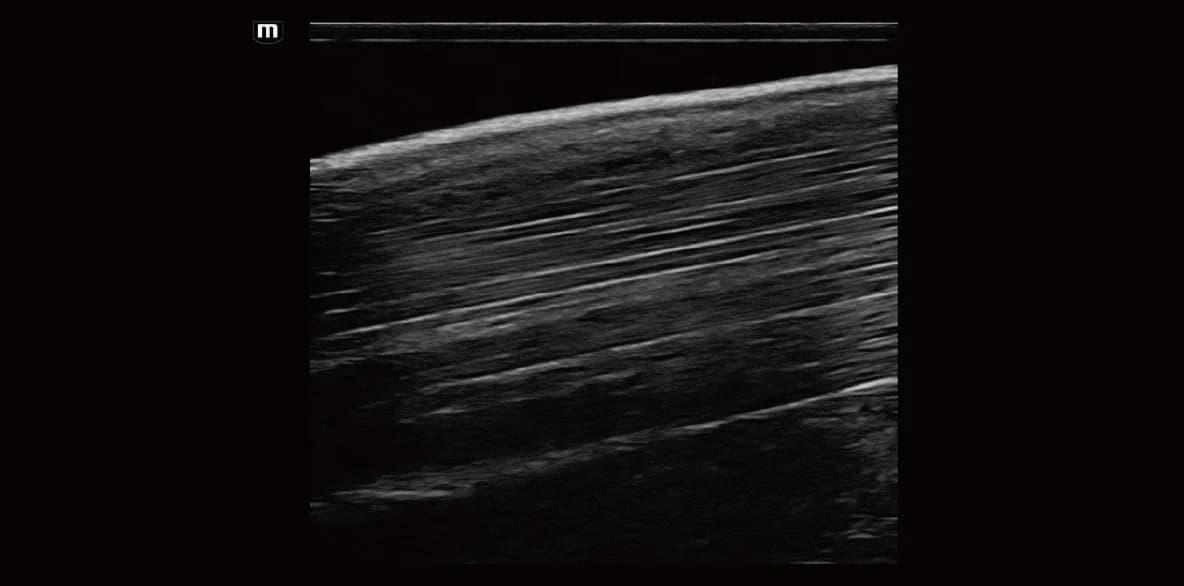

Equine Proximal Metacarpal Region
Tendon Calcification

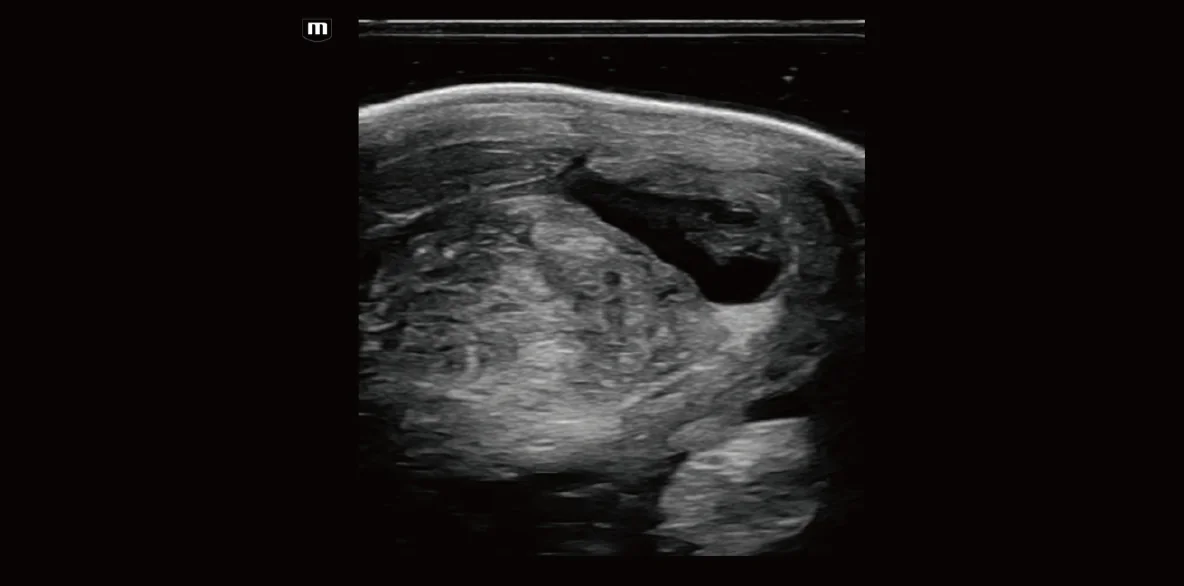

Equine Tendon Hydrops

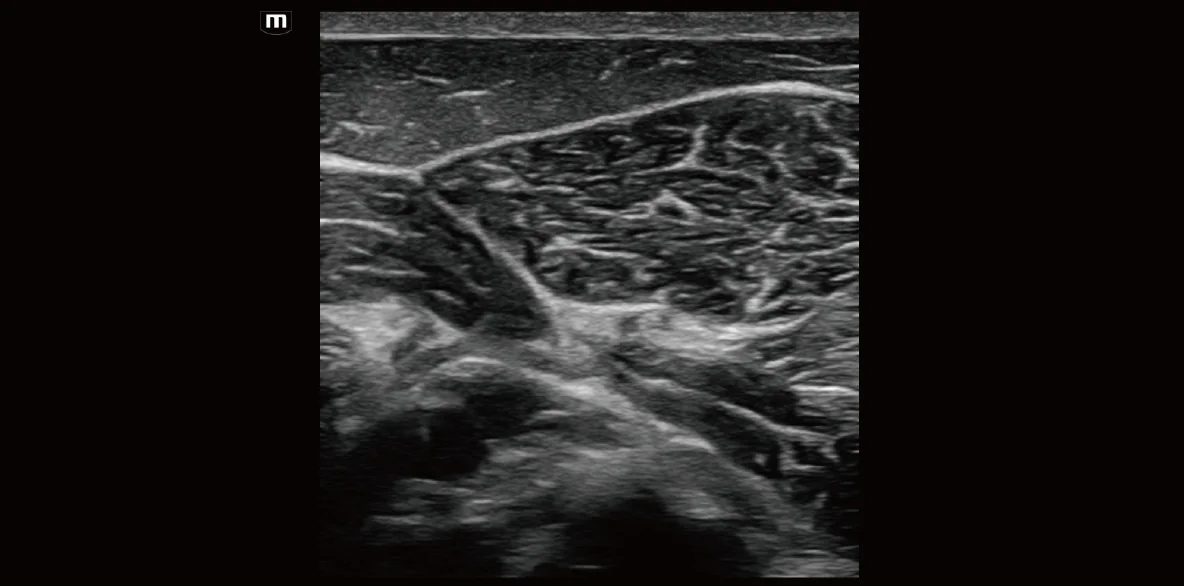

Equine Lumbar Muscle
Equine Abdominal Aorta Flow
Equine Spine
Technical specifications
Vetus EQ specifications
Highlights published by the manufacturer. Complete specifications and configuration options are available on request.
Request full specification sheet- Main monitor
- 15.6-inch high resolution color LED monitor, narrow bezel, wide viewing angle
- Touch screen
- 12.3-inch high sensitivity anti-glare color touch screen
- Main unit weight
- 3 kg
- Thickness
- 44 mm
- Imaging platform
- ZST+ (Zone Imaging, Zone Focusing, Zone Processing)
- MSK transducer
- L13-3Ns wide frequency range linear
- Cardiology transducer
- P4-2s phased array
- Abdomen transducer
- C5-1s convex array
- Reproduction transducer
- 6LE5Vs intrarectal linear array
- Battery (with U-bank)
- Additional battery pack supports up to 8 hours of working time
Vetus EQ brochure
Request the brochure and detailed product information from our team.
