Medical Imaging · Cart-based Ultrasound
Vetus 5
Veterinary Diagnostic Ultrasound System
Vetus 5 is a cost-effective veterinary ultrasound imaging system with multiple intelligent functions, built on Mindray's new VETUS platform.
Vetus 5Exp
Veterinary Diagnostic Ultrasound System
“Expand your vision”
Vetus 5Exp is a cost-effective veterinary ultrasound system with dedicated animal presets, a simple workflow and a protective design for everyday practice.
- Dedicated Animal Presets
- Simple Veterinary Workflow
- Powerful Veterinary Tools
- iWorks
- Abdomen & Reproduction
- Superficial & Musculoskeletal
Built-in battery supports scanning for more than 80 minutes
Overview
Vetus 5Exp overview
Mindray Vetus series offer the professional veterinary solution to a wide variety of species ranging from small pets to large farm animals.
Vetus 5Exp is a cost-effective veterinary ultrasound imaging system with multiple intelligent functions. Configured with the brand new VETUS platform, it easily meets increasingly diversified veterinarian demands.
Incorporating dedicated animal image presets, a simple workflow, and a veterinary protective design, it promises an ideal ultrasound system for your everyday practice.
Key features
Vetus 5Exp features
Dedicated Animal Presets
Professional ultrasound image presets according to different animals' body characteristics. Animal species are subdivided into different categories by weight and body size for precise diagnosis. Veterinary-recognized measurement formula presets allow easy user-defined modification.
Simple Veterinary Workflow
Transducers and the corresponding exam modes are displayed in the same interface, so you can select or switch within 1 second. The recent 4 modes are presented at hand for one-key switching to frequently used exam modes. A super smart touch screen supports powerful multi-touch operation.
Powerful Veterinary Tools
Auto measurement (Auto PW, Auto CW) maximizes productivity for easy, accurate scanning. Dedicated application packages cover Abdomen, Cardiology, Reproduction and Small Parts. Resourceful tools include vet formulas, a comment library, animal body marks and report templates.
iWorks
The automated workflow guide iWorks standardizes and simplifies the vet Abdomen and Cardiology workflow, allowing more focus on the animal diagnosis.
Abdomen & Reproduction
One Probe Solution supports abdominal, reproduction and basic heart ultrasound. Smart Bladder provides automatic calculation of the bladder volume. UWN Contrast Imaging offers non-invasive assessment of animal abdominal organs with an easy workflow. Transducers: C11-3 micro convex array for small-sized animals; C6-2 convex array for large-sized animals.
Superficial & Musculoskeletal
iNeedle provides biopsy needle enhancement and guidance. iScape View delivers real-time panoramic imaging to extend the field of view. Elastography Imaging displays tissue stiffness for precise evaluation. Transducers: L12-3E high-frequency linear array for multi-sized animals; L14-6 high-frequency linear array for small-sized animals.
Cardiology
Free Xros M (Anatomical M mode) offers up to 3 sample lines to detect more details. TDI (Tissue Doppler Imaging) with complete 4 modes (TVI/TVD/TVM/TEI) enables wall motion analysis for myocardial function. TDI QA (Tissue Doppler Imaging with Quantitative Analysis) analyzes myocardium motion with strain/strain rate. Transducers: P8-2 mid/high-frequency phased array for mid and small-sized species; P10-4E high-frequency phased array for small-sized species; P4-2 low-frequency phased array for large species. More transducers can be supported; contact your local sales representative for details.
Guarantee of Safety and Stability
EMC (Electro Magnetic Compatibility): the highest anti-interference level ensures the stability of imaging quality. Class B (power supply requirement): the lower AC power requirement offers more safety and compatibility in any complicated environment. iPower (built-in battery): a large battery supports scanning for more than 80 minutes, enhancing the continuity of daily work even when the power supply is poor, and ensuring mobility.
Dedicated Protective Design for Veterinary Practice
Protecting the machine from animal hairs, body liquid and dust ensures high capability, reliability and long service life. Design elements include a keypad protective silicone film (anti-liquid and anti-animal hair), an integrated control panel for easy cleaning and anti-dust design, transducer cable management, and a transducer port cover protecting the unit from dust and animal hairs.
Clinical applications
Where the Vetus 5Exp fits
Clinical applications
- Abdomen
- Cardiology
- Reproduction
- Small Parts
- Superficial & Musculoskeletal
Clinical focus
Species referenced
Canine · Feline
Image quality
Vetus 5Exp clinical images

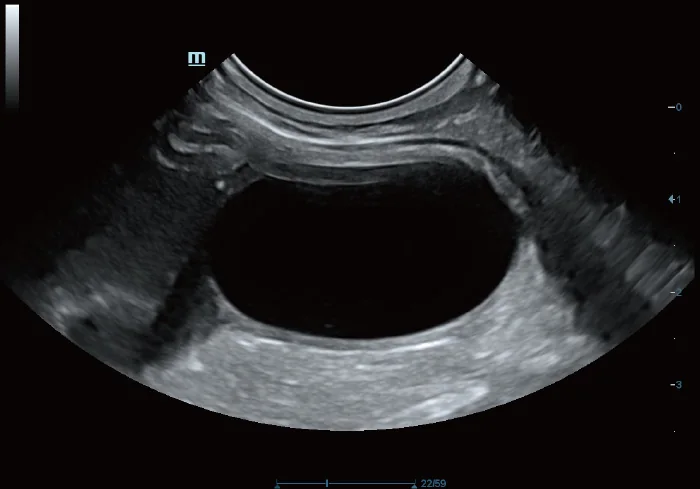

Feline Bladder

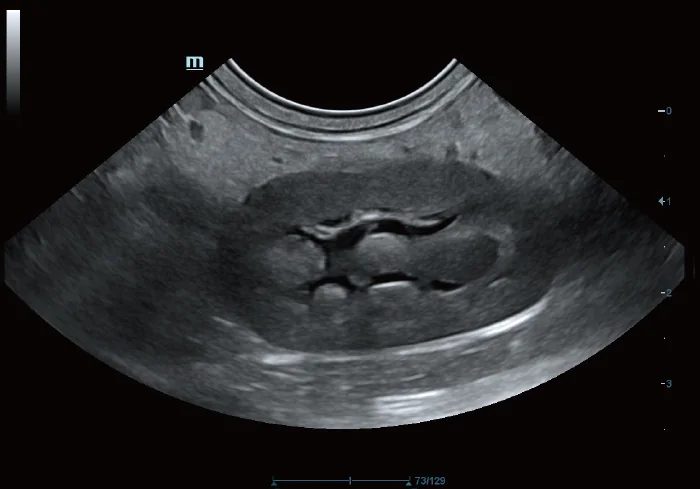

Canine Kidney

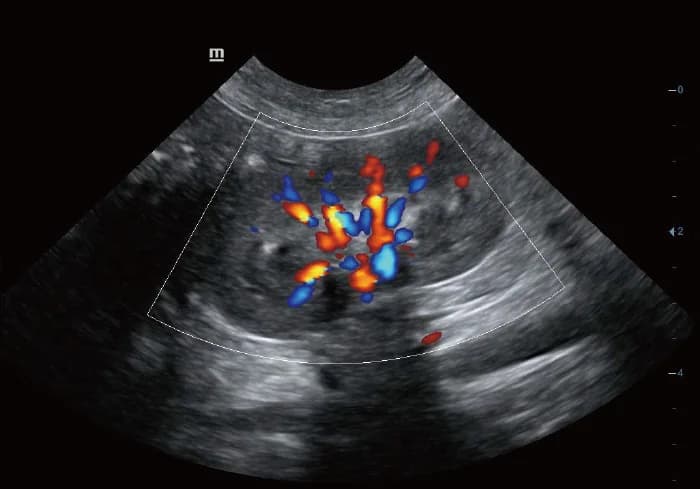

Color Mode of Canine Kidney

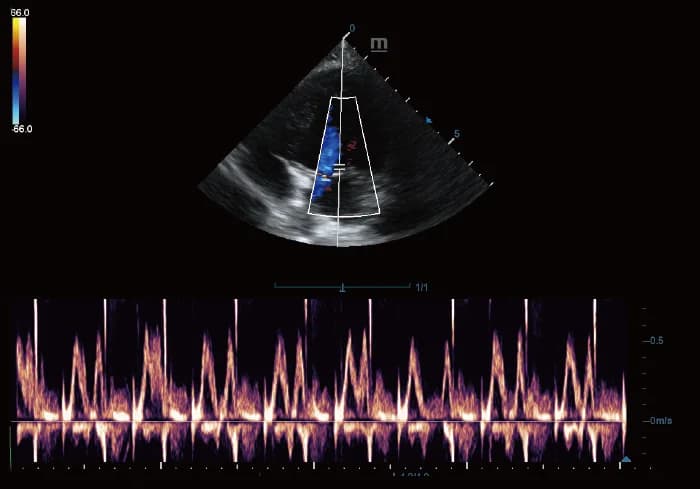

PW Mode of Canine Heart
Long Axis View of Canine Heart

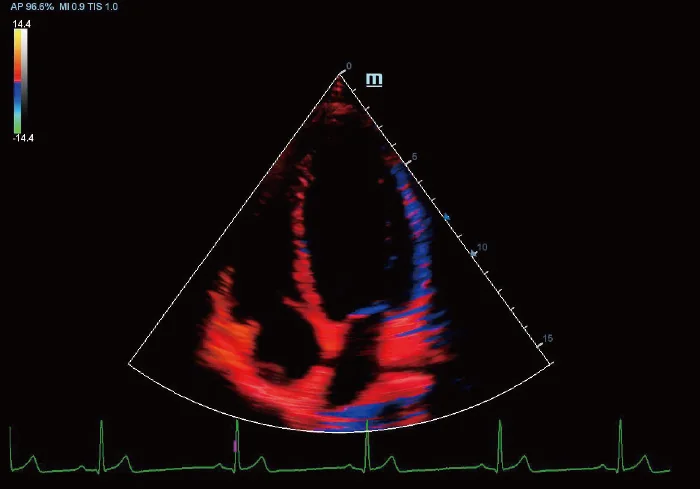

TDI of Canine Heart
M Mode of Canine Heart
TDI QA of Canine Heart
Technical specifications
Vetus 5Exp specifications
Highlights published by the manufacturer. Complete specifications and configuration options are available on request.
Request full specification sheet- Built-in battery (iPower)
- Scanning for more than 80 minutes
- Exam mode selection/switch
- Within 1 second
- Recent exam modes at hand
- 4
- Free Xros M sample lines
- Up to 3
- TDI modes
- 4 (TVI/TVD/TVM/TEI)
- Auto measurement
- Auto PW, Auto CW
- Application packages
- Abdomen, Cardiology, Reproduction, Small Parts
- Power supply requirement
- Class B
- EMC (Electro Magnetic Compatibility)
- Highest anti-interference level
- Transducers
- C11-3, C6-2, L12-3E, L14-6, P8-2, P10-4E, P4-2
Vetus 5Exp brochure
Request the brochure and detailed product information from our team.
Related products
More cart-based ultrasound systems
Medical Imaging · Cart-based Ultrasound
Vetus 8
Veterinary Diagnostic Ultrasound System
Vetus 8 is a premium veterinary ultrasound system with species-specific image presets, a 23.8-inch HD monitor and simple workflow for everyday practice.
Medical Imaging · Cart-based Ultrasound
Vetus 7
Veterinary Diagnostic Ultrasound System
Cart-based veterinary ultrasound with species-specific presets, iTouch and iClear image optimization, auto measurements and a 21.5" HD monitor.
FAQ
Vetus 5Exp FAQs
Common questions about the Vetus 5Exp veterinary diagnostic ultrasound system.
What is the Vetus 5Exp?
The Vetus 5Exp is a veterinary diagnostic ultrasound system in the cart-based ultrasound range. Vetus 5Exp is a cost-effective veterinary ultrasound imaging system with multiple intelligent functions. Configured with the brand new VETUS platform, it easily meets increasingly diversified veterinarian demands.
What clinical applications does the Vetus 5Exp support?
Clinical applications for the Vetus 5Exp include Abdomen, Cardiology, Reproduction, Small Parts and Superficial & Musculoskeletal.
What are the key specifications of the Vetus 5Exp?
Built-in battery (iPower): Scanning for more than 80 minutes; Exam mode selection/switch: Within 1 second; Recent exam modes at hand: 4; Free Xros M sample lines: Up to 3. A full specification sheet is available on request.
How can I get a quote or demo for the Vetus 5Exp?
Use the enquiry form on this page and choose "Request a Quote" or "Request a Demo", or email info@mindrayanimal.com. Our team will respond with pricing, configuration options and the product brochure.
Request a quote for the Vetus 5Exp
Tell us about your practice and a veterinary imaging specialist will send pricing, configuration options and the product brochure for the Vetus 5Exp, or arrange a demo.
