Medical Imaging · Cart-based Ultrasound
Vetus 5Exp
Veterinary Diagnostic Ultrasound System
Vetus 5Exp is a cost-effective veterinary ultrasound system with dedicated animal presets, a simple workflow and a protective design for everyday practice.
Vetus 5
Veterinary Diagnostic Ultrasound System
“Expand your vision”
Vetus 5 is a cost-effective veterinary ultrasound imaging system with multiple intelligent functions, built on Mindray's new VETUS platform.
- Dedicated Animal Presets
- Simple Veterinary Workflow
- Advanced Ultrasound Technology
- Powerful Intelligent Tools: iTouch
- Animal Abdomen Solutions
- Animal Cardiac Solutions
Select or switch transducer and exam mode within 1 second
Overview
Vetus 5 overview
Vetus 5 offers the cost-effective veterinary ultrasound imaging system with multiple intelligent functions. Configured with Mindray's brand new VETUS platform, it easily meets increasingly diversified veterinarian demands.
Key features
Vetus 5 features
Dedicated Animal Presets
Professional ultrasound image presets according to different animals' body characteristics. Animal species are subdivided into different categories by weight and body size for precise diagnosis. Veterinary-recognized measurement formula presets allow easy user-defined modification.
Simple Veterinary Workflow
Transducers and the corresponding exam modes are displayed in the same interface, so you can select or switch within 1 second. The recent 4 modes are presented at hand, with one key to switch to the frequently used exam mode. A super smart touch screen supports powerful multi-touch fast operation.
Advanced Ultrasound Technology
ComboWave transducers integrated with Mindray's unique 3T technology allow you to experience outstanding performance with extreme image resolution and uniformity in animal abdomen, small parts, reproduction and more.
Powerful Intelligent Tools: iTouch
iTouch is a one-button auto image optimization solution which is able to optimize imaging quality automatically, including in B/PW mode.
Animal Abdomen Solutions
Professional application packages for the abdomen include iScape real-time panoramic imaging, iNeedle for biopsy needle enhancement, Elastography Imaging, UWN Contrast Imaging, and Smart Bladder for automatic volume calculation.
Animal Cardiac Solutions
Professional application packages for cardiac exams include CW/PW automatic tracking and analysis, Free Xros M for anatomical M mode, Free Xros CM for curved anatomical M mode, Tissue Doppler Imaging (supporting 4 modes), and Tissue Doppler Imaging with Quantitative Analysis.
Clinical applications
Where the Vetus 5 fits
Clinical applications
- Animal abdomen
- Small parts
- Reproduction
- Animal cardiac
Clinical focus
Species referenced
Canine · Feline
Image quality
Vetus 5 clinical images

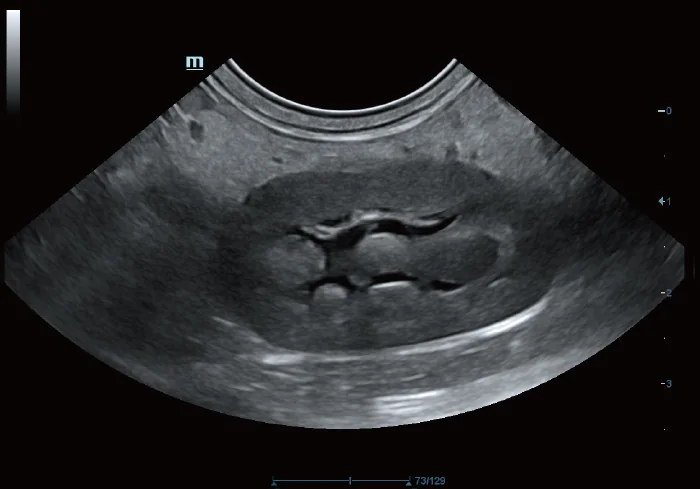

Canine Kidney

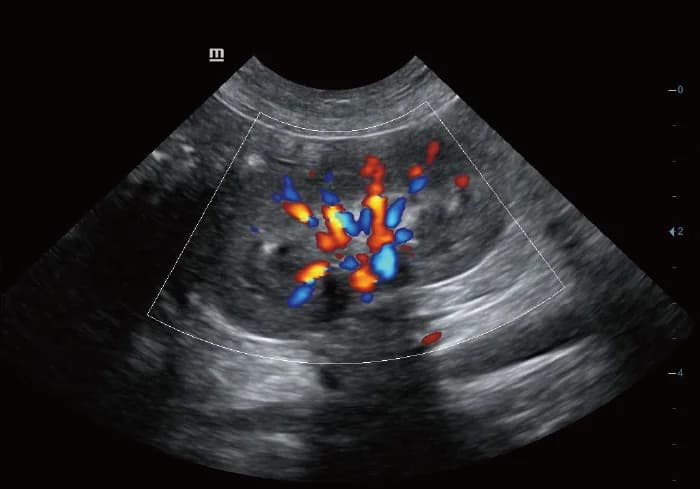

Color Mode of Canine Kidney

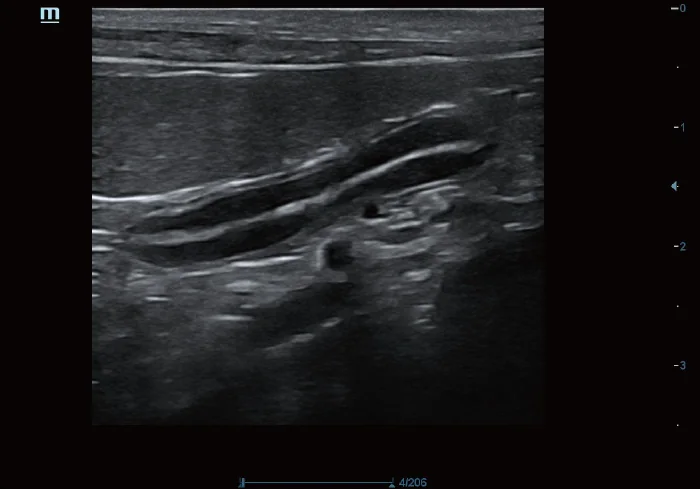

Feline Abdomen

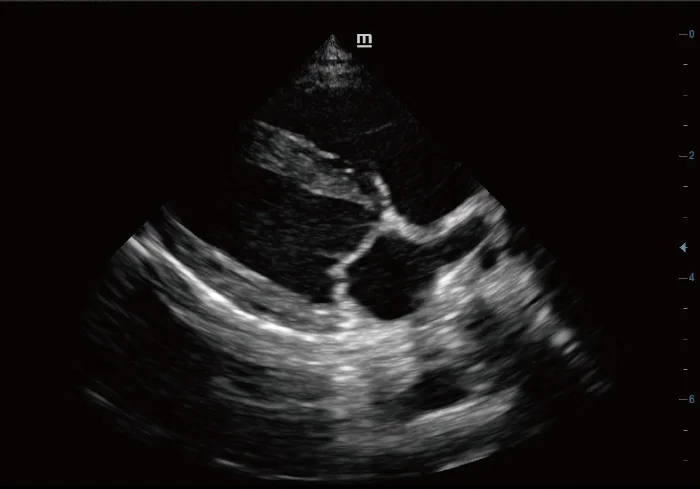

Long Axis View of Canine Heart

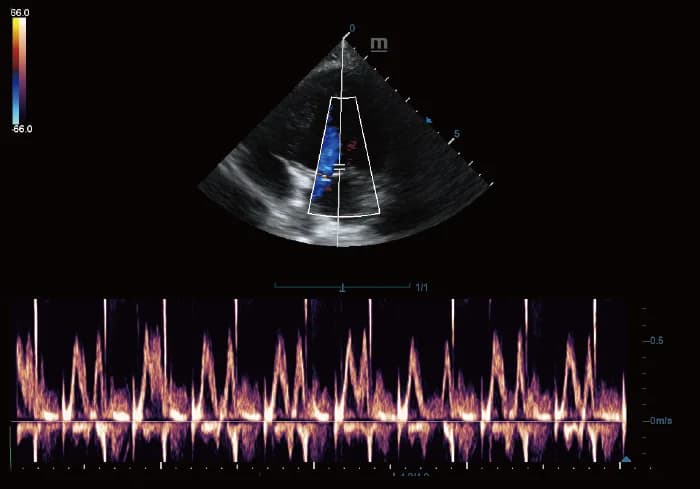

PW Mode of Canine Heart
TDI QA of Canine Heart
Technical specifications
Vetus 5 specifications
Highlights published by the manufacturer. Complete specifications and configuration options are available on request.
Request full specification sheet- Platform
- VETUS platform
- Transducer/exam mode switching
- Within 1 second
- Recent exam modes at hand
- 4
- Transducer technology
- ComboWave transducers with 3T technology
- Touch screen
- Multi-touch
- Tissue Doppler Imaging
- Supports 4 modes
Vetus 5 brochure
Request the brochure and detailed product information from our team.
