Vetus 8
Veterinary Diagnostic Ultrasound System
“Excellent performance for your trust”
Vetus 8 is a premium veterinary ultrasound system with species-specific image presets, a 23.8-inch HD monitor and simple workflow for everyday practice.
- Quality Images
- Easy Workflow
- Powerful Intelligent Tools
- iStation
- iClear
- iTouch
23.8 inch HD LED monitor with 1920×1080 resolution
Overview
Vetus 8 overview
Animals are the closest friends and most trusted partners of human beings. Mindray has always been devoted to exploring the dedicated diagnostic imaging solutions for veterinary needs. Starting a new phase in ultrasound imaging, Mindray rolls out the brand new Vetus series to provide professional veterinary solutions catering to a wide variety of species ranging from small pets to large farm animals.
Vetus 8, the premium veterinary ultrasound imaging system, adopts the most cutting-edge ultrasound technology to provide quality images according to different animal species. Moreover, packaged with the simple workflow, dedicated design and complete veterinary solution make it the ideal ultrasound system for your everyday practice.
Key features
Vetus 8 features
Quality Images
Professional veterinary image presets according to different animals' body characteristics (canine, feline, equine, bovine, ovine, etc.), with support for customized species. Different animal species are subdivided by weight and body size for precise diagnosis (e.g. small dog, medium dog, large dog). A 23.8 inch High Definition LED monitor with 1920×1080 resolution provides clear tissue details for precise diagnosis.
Easy Workflow
Quick switch of transducers and exam modes in the same interface within 1 second. One click switches to frequently-used modes on the touch screen. Concise UI design shows only associated menu options for a clear procedure. A dedicated animal information system supports fast exam creation and animal sterilization management. Volume control: the volume of PW/CW/TDI is off by default to avoid frightening the pets.
Powerful Intelligent Tools
Auto measuring tools (Auto PW, Auto CW, Auto EF) help to maximize the productivity of accurate scanning with ease. An automated workflow procedure helps guide abdomen and cardiology ultrasound scanning.
iStation
Mindray's unique Veterinary Information Management System enables you to integrate, review, archive and retrieve all data effectively.
iClear
Improves image quality based on auto structure detection, delivering better contrast resolution and clearer, sharper tissue border definition.
iTouch
An auto image optimization solution with one touch, able to optimize imaging quality automatically in B/PW mode.
Easy Data Management: A Flexible Way to Connect Vetus 8
iStorage™ directly transfers veterinary images and reports to a PC via wired or wireless network. Medsight™ is an interactive app that transfers clinical images/cines and reports to your smart devices via WiFi, supporting both iOS and Android powered devices.

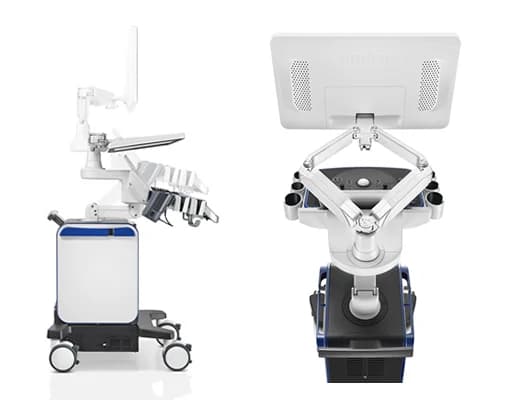

Ergonomics Dedicated for Veterinary Practice
23.8'' high definition LED monitor with 180-degree rotation; 13.3'' anti-glare touch screen with 30-degree rotation and multi-gesture support; Dual-Wing floating monitor supporting arm that moves anywhere you want; anti-dirty control panel, rotatable and height adjustable; sliding keyboard with designed silicon cover; 5 active smart transducer sockets with easy lock design; high capacity battery for standby mode to keep image data always safe; transducer cable management to help keep cables off the ground; stable wheels with small footprint and 360° rotation.
Small Animal Solution
For feline, small-sized canine and exotic small animals. C11-3s: micro-convex transducer for abdominal scanning and basic cardiology in cats, small dogs, and exotic animals. L12-4s: high frequency linear array transducer. P8-2s: mid/high-frequency phased array for mid and small-sized species. P10-4s: high-frequency phased array for small-sized species.
Large Animal Solution
For big-sized canine, equine, bovine, ovine and exotic big animals. 6LE5Vs: intrarectal linear array transducer for equine and farm animal reproduction exam. C6-2s: convex array transducer for abdominal and reproduction scanning in big animals. P4-2s: low-frequency phased array transducer for medium-sized and large species. More transducers can be supported; contact Mindray for further details.
Clinical applications
Where the Vetus 8 fits
Clinical applications
- Abdominal imaging
- Cardiology
- Reproduction
Clinical focus
Species referenced
Canine · Feline · Equine · Bovine · Ovine · Exotic animals
Image quality
Vetus 8 clinical images

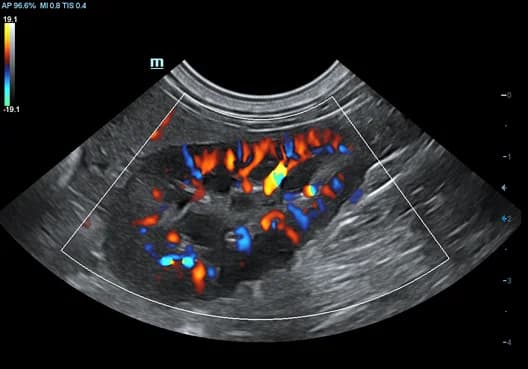

Canine Kidney

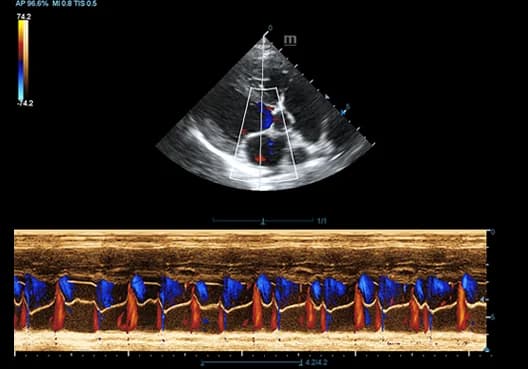

Color M mode of Canine Heart

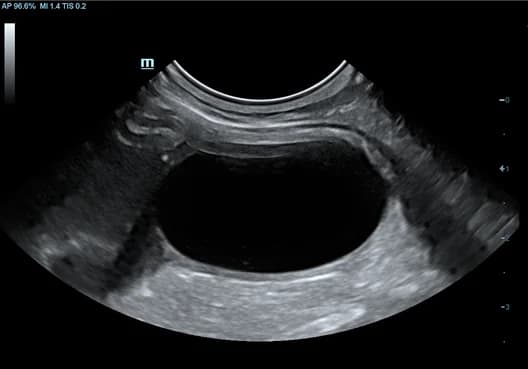

Feline Bladder

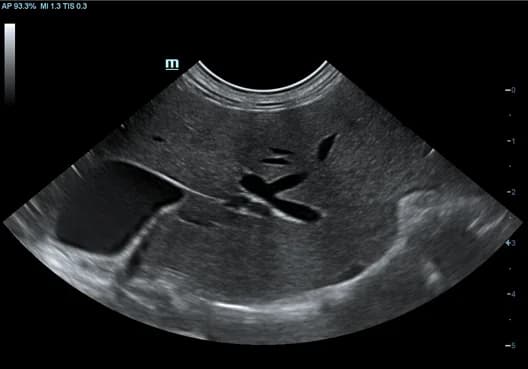

Feline Liver

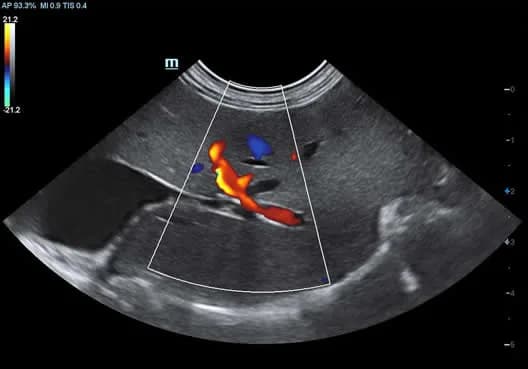

Hepatic Flow Feline
Long Axis View of Canine Heart
TDI QA of Canine Heart
Technical specifications
Vetus 8 specifications
Highlights published by the manufacturer. Complete specifications and configuration options are available on request.
Request full specification sheet- Main monitor
- 23.8 inch High Definition LED, 1920×1080 resolution, 180-degree rotation
- Touch screen
- 13.3 inch anti-glare, 30-degree rotation, multi-gesture support
- Active transducer sockets
- 5, with easy lock design
- Transducer / exam mode switching
- Within 1 second
- Wheels
- 360° rotation, small footprint
- Battery
- High capacity battery for standby mode
- Auto measurement tools
- Auto PW, Auto CW, Auto EF
- Data connectivity
- iStorage (wired or wireless network to PC); Medsight app via WiFi (iOS and Android)
- Small animal transducers
- C11-3s, L12-4s, P8-2s, P10-4s
- Large animal transducers
- 6LE5Vs, C6-2s, P4-2s
Vetus 8 brochure
Request the brochure and detailed product information from our team.
Related products
More cart-based ultrasound systems
Medical Imaging · Cart-based Ultrasound
Vetus 5
Veterinary Diagnostic Ultrasound System
Vetus 5 is a cost-effective veterinary ultrasound imaging system with multiple intelligent functions, built on Mindray's new VETUS platform.
Medical Imaging · Cart-based Ultrasound
Vetus 5Exp
Veterinary Diagnostic Ultrasound System
Vetus 5Exp is a cost-effective veterinary ultrasound system with dedicated animal presets, a simple workflow and a protective design for everyday practice.
FAQ
Vetus 8 FAQs
Common questions about the Vetus 8 veterinary diagnostic ultrasound system.
What is the Vetus 8?
The Vetus 8 is a veterinary diagnostic ultrasound system in the cart-based ultrasound range. Vetus 8, the premium veterinary ultrasound imaging system, adopts the most cutting-edge ultrasound technology to provide quality images according to different animal species. Moreover, packaged with the simple workflow, dedicated design and complete veterinary solution make it the ideal ultrasound system for your everyday practice.
What clinical applications does the Vetus 8 support?
Clinical applications for the Vetus 8 include Abdominal imaging, Cardiology and Reproduction.
What are the key specifications of the Vetus 8?
Main monitor: 23.8 inch High Definition LED, 1920×1080 resolution, 180-degree rotation; Touch screen: 13.3 inch anti-glare, 30-degree rotation, multi-gesture support; Active transducer sockets: 5, with easy lock design; Transducer / exam mode switching: Within 1 second. A full specification sheet is available on request.
How can I get a quote or demo for the Vetus 8?
Use the enquiry form on this page and choose "Request a Quote" or "Request a Demo", or email info@mindrayanimal.com. Our team will respond with pricing, configuration options and the product brochure.
Request a quote for the Vetus 8
Tell us about your practice and a veterinary imaging specialist will send pricing, configuration options and the product brochure for the Vetus 8, or arrange a demo.
